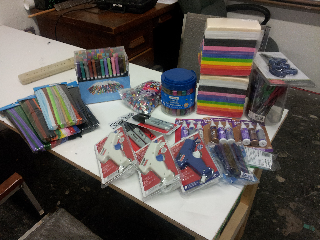

Kit assembly line

Members of the Atlanta Hobby Robot Club and Freeside help stamp, color code, and package up Learn to Solder kits!

Monday, September 24, 2012

v1.5 PCB working prototype

Assembled v1.6

With color coded components. Note that the LEDs are on the
other side, to allow the "blinking eyes" to be integrated with the robot body vacuum form component, and still allow access to the battery from the back.

V1.6 PCBs "silkscreened"

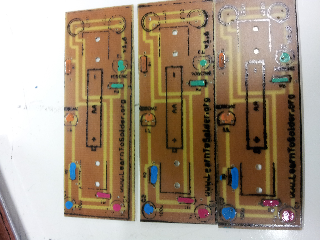

Rubber stamp board layout and paint pen dot color coding for component layout.

Sunday, September 23, 2012

Tin plated PCBs

V1.6 Learn to Solder boards, fresh from the tinning bath.
